Product Code: OCT111

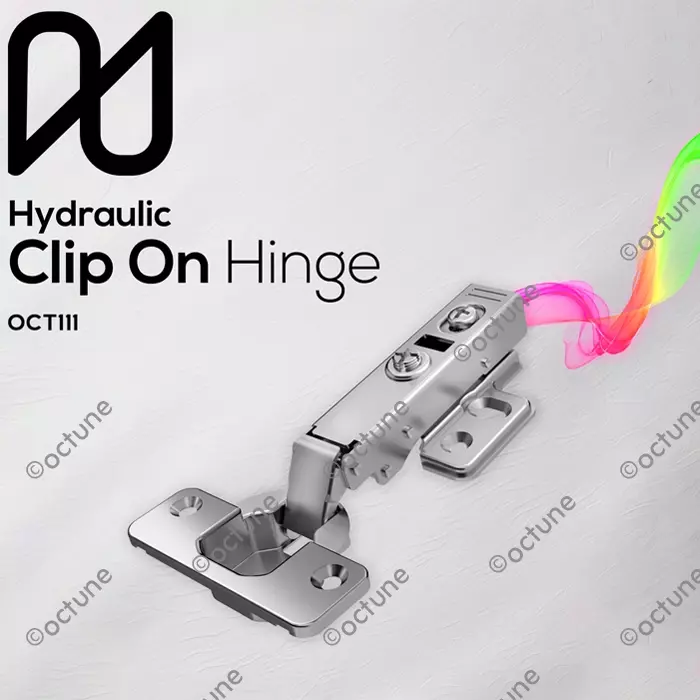

Octune Hydraulic Auto Hinge in nickel-plated MS with soft-close clip-on design. Available in 0, 8, and 16 crank options.
Available Offer
The Octune Hydraulic Auto Hinge is a concealed clip-on hinge designed for smooth, soft-close functionality in modular furniture. Made from mild steel (MS) with a nickel-plated finish, it delivers strength, durability, and sleek performance.

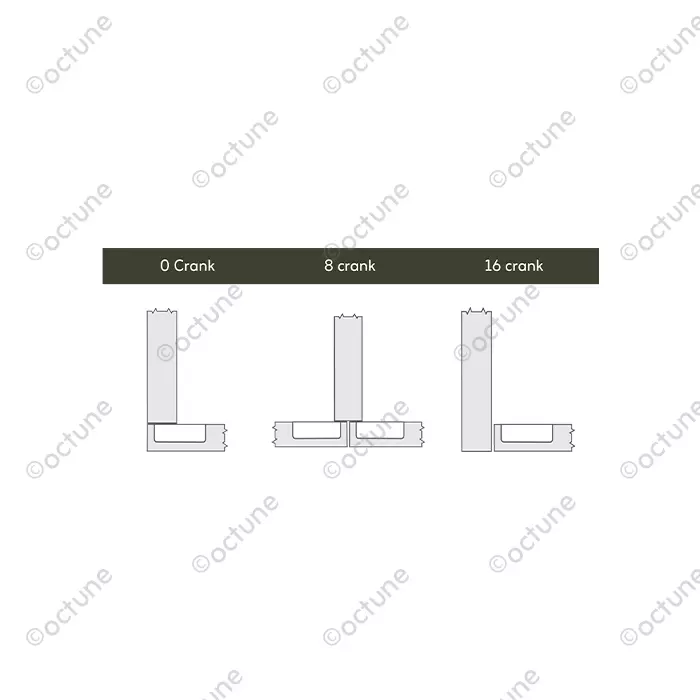

This hinge is available in three crank options, suitable for different door applications:
0 Crank (Full Overlay): Door fully covers the cabinet side panel.
8 Crank (Half Overlay): Two doors share the same cabinet side, each covering half.
16 Crank (Inset / Insert): Door sits inside the cabinet frame, flush with the panel.
Features & Usage:
Clip-on type hinge – easy to install and remove without tools.
Hydraulic soft-close – ensures doors close smoothly and silently.
Durable MS with nickel plating – corrosion-resistant and long-lasting.
100° opening angle – provides wide and easy access.
Adjustable fitting – allows precise door alignment.
Suitable for kitchen cabinets, wardrobes, and modular furniture.
Finish & Material:
Material: Mild Steel (MS)
Finish: Nickel Plated
Size & Specs:
Crank options: 0 / 8 / 16
Opening angle: 100°
Soft-close clip-on hinge
1 set contains: 2 pieces of hinges
Installation:
Concealed clip-on type hinge
Easy to clip in/out during installation or adjustments
Professional fitting recommended for best results
The Octune Hydraulic Auto Hinge provides premium functionality and smooth performance, making it an essential fitting for modern modular furniture.
